uv roll to machine

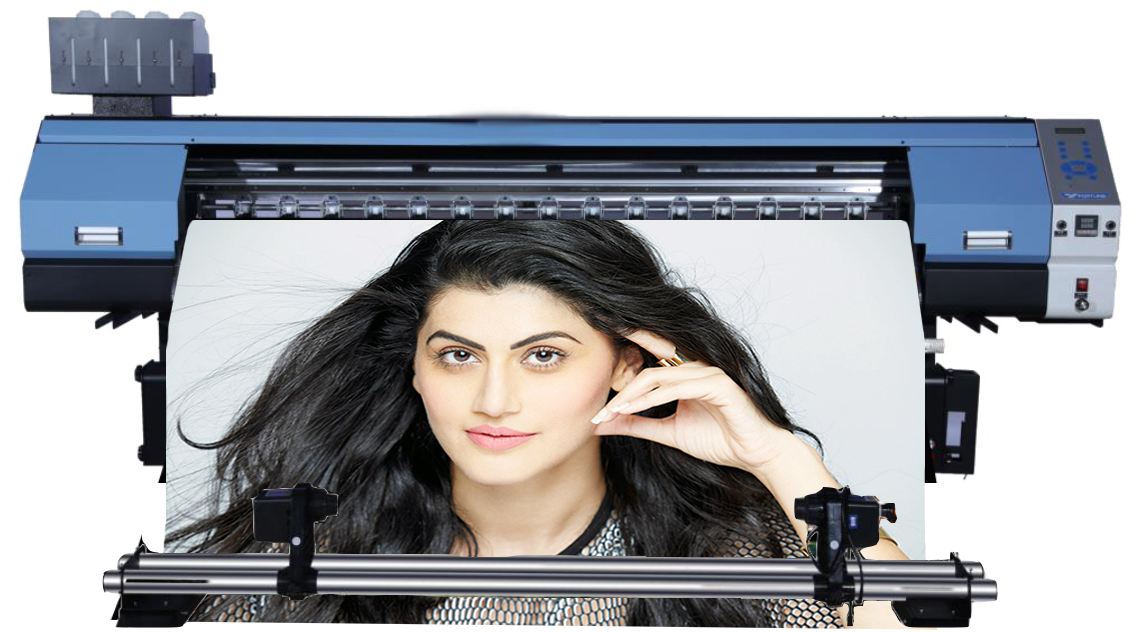

The PAL-2000 UV ROLL TO ROLL MACHINE is a wide-format ultraviolet (UV) printer that offers superior printing quality and productivity with roll media. UV Roll to Roll is capable of creating a day-night display that uses ordinary ambient light for daytime display and integrated back-lighting for nighttime display. While the top and bottom layers have the same design, the bottom layer is printed with a different halftone density, making it possible to reproduce the same density during the daytime as at night time. (Three layers.) UV Roll to Roll uses flexible UV Inks; these inks do not crack when the printed media is bent.

uv roll to machine      uv roll to machine


Sr No. PRODUCT SPECIFICATION
1 Printer Model PAL-UV RTR
2 Printing Size 6 feet 1829 mm
3 Print head Type Epson Dx5 / DX7
4 Print head Quantity 2 no
5 Printing Color CMYK+W
6 Ink Type UV Led Curable Ink
7 Ink System Negative Pressure System (NPS) with Automatic head Cleaning.
8 Printing Height 1.5cm
9 Media Weight 40Kg
10 File Format JPG, PDF, TIFF
11 Operating System Win7 x64
12 Rip Software Maintop/Photoprint/optional
13 Operating Environment 20 C / 28 C
14 Power Requirement AC 220 Volt (50hz) 500 W
15 Printer Weight 330kg
16 Printable Media Any Roll form Media

PRODUCT FEATURES

  EPS DX5/DX7/XP600
  Adjustable head height (20mm)
  Imported High Precision Glider
  Auto lift cleaning station
  Wide-anti Stalin pinch. Roll to roll
  Large capacity bulk ink system.

APPLICATION INDUSTRY

  Advertising Industry
  House Decorating
  Light Box
